JUKI AMS210ENHL1510

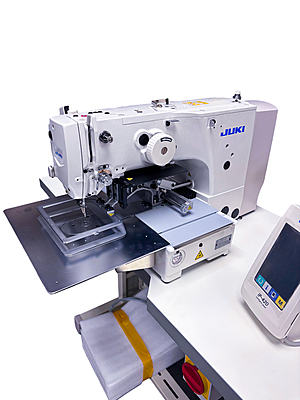

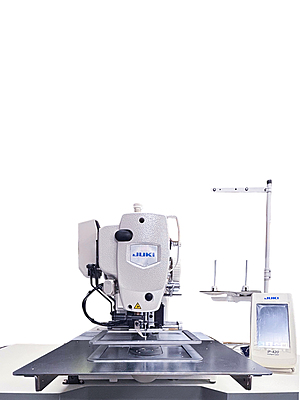

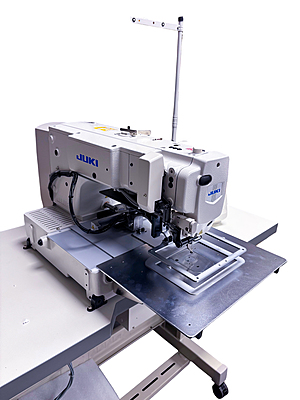

JUKI AMS‑210EN Series
Computer-Controlled Cycle Machine with Input Function
The JUKI AMS‑210EN Series is a high-speed, electronically controlled cycle sewing system engineered for precision pattern stitching in apparel and industrial textile applications. Designed for reliability, productivity, and energy efficiency, this series supports consistent seam quality across a wide range of materials.
Technical Features:
High-Speed Sewing Performance
Max sewing speed: 2,800 sti/min (maintained up to 4 mm stitch pitch)
Improved acceleration profile minimizes cycle time, especially for short runs
Increased productivity—up to 90% faster on long stitches compared to AMS-210E
Precision Feed Control
Encoder-based X-Y stepping motor feed system ensures accurate stitch placement
Enhanced pattern accuracy with reduced vibration and material slippage
Active Thread Tension Management
Automatic thread tension adjustments per stitch or section
Prevents skipped stitches, loose seams, and thread breakage on variable materials
Semi-Dry Head Mechanism
Hook-only lubrication system prevents oil staining of sewn materials
Ideal for high-value garments or technical fabrics
Flexible Material Handling
Programmable intermediate presser stroke (0–7 mm) for handling thick seams
Multiple frame drive types (monolithic or separate motor) to match material and application
Advanced User Interface

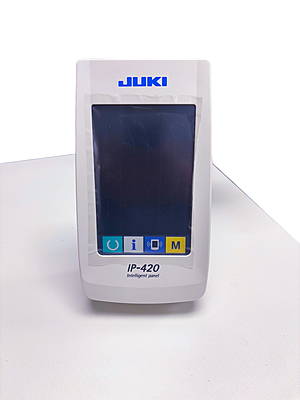

IP-420 touch panel (standard): Full-color LCD, multilingual support, USB data I/O
Real-time control over stitch parameters, tension settings, speeds, and editing
Up to 500,000 stitches and 999 patterns storable; 50,000 stitches per pattern max
Energy Efficiency
Integrated direct-drive AC servo motor reduces power consumption by up to 30%
Compact control box with improved airflow and lower heat generation
Model Variants:
| Model | Sewing Area (X × Y) | Feed Frame Type | Application Material |
|---|---|---|---|
| AMS-210EN-1306 | 130 mm × 60 mm | SS, SL, HS, HL | Light to heavy |
| AMS-210EN-1510 | 150 mm × 100 mm | SS, SL, HS, HL | Light to heavy |
| AMS-210EN-2210 | 220 mm × 100 mm | SL, HL | Medium to heavy |
Core Specifications:
Stitch Length: 0.1 – 12.7 mm (0.05 mm steps)
Needle Bar Stroke: 41.2 mm
Intermediate Presser Lift: Max 20 mm (standard stroke: 4 mm)
Power Requirements: 200–240V (Single / 3-phase), 450 VA
Needle Compatibility: DPx5 (#80–#30), DPx17 (#50–#2)

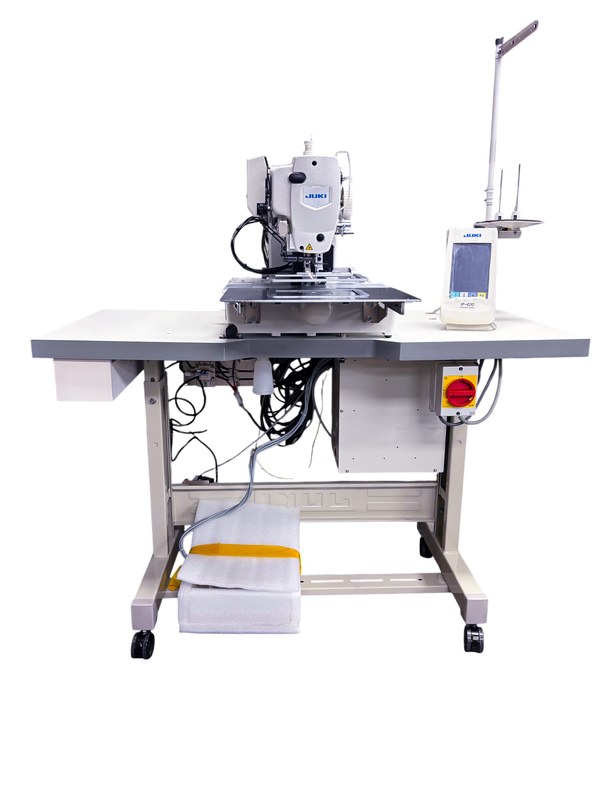

Dimensions (with table): W 1,200 mm × D 710–770 mm × H 1,200 mm
Machine Head Weight: Approx. 69–77 kg
Applications:
Emblem and label attachment
Bartacking and reinforcement stitching
Decorative pattern sewing
Component assembly for apparel, uniforms, leather goods, and more
